JumpCloud SAML Implementation

Category: Login with SSO
On this page:

    This article contains JumpCloud-specific help for configuring Login with SSO via SAML 2.0. For help configuring Login with SSO for another IdP, refer to SAML 2.0 Configuration.

    Configuration involves working simultaneously within the Bitwarden Web Vault and the JumpCloud Portal. As you proceed, we recommend having both readily available and completing steps in the order they’re documented.

    Tip

    Already an SSO expert? Skip the instructions in this article and download screenshots of sample configurations to compare against your own.

    Download Sample

    Open SSO in the Web Vault

    If you’re coming straight from SAML 2.0 Configuration, you should already have an Organization ID created. If you don’t refer to that article to create an Organization ID for SSO.

    Navigate to your Organization’s ManageSingle Sign-On screen:

    SAML 2.0 Configuration
    SAML 2.0 Configuration

    You don’t need to edit anything on this screen yet, but keep it open for easy reference.

    Create a JumpCloud SAML App

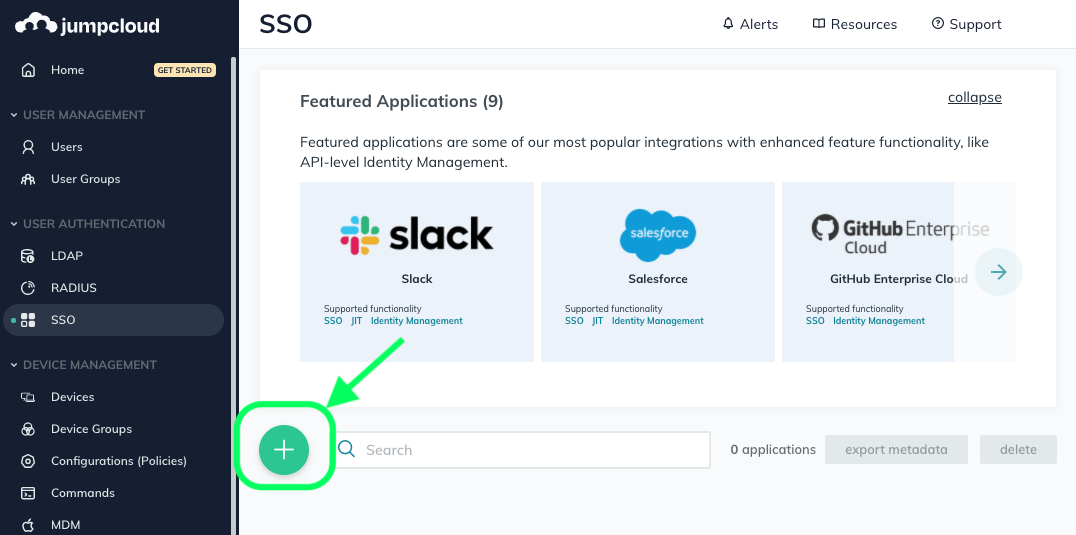

    In the JumpCloud Portal, select SSO from the menu and select the Add icon:

    Add JumpCloud App
    Add JumpCloud App

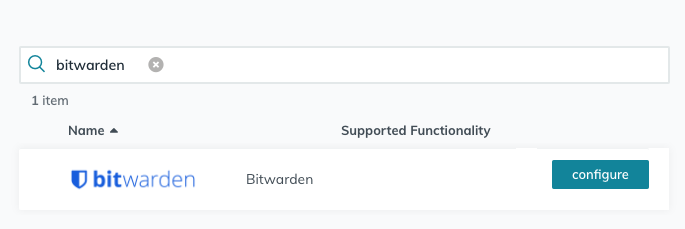

    Enter Bitwarden in the search box and select the configure button:

    Configure Bitwarden
    Configure Bitwarden
    Tip

    If you’re more comfortable with SAML, or want more control over things like NameID Format and Signing Algorithms, create a Custom SAML App instead.

    General Info

    In the General Info section, configure the following information:

    Field Description
    Display Label Give the application a Bitwarden-specific name.

    Single Sign-On Configuration

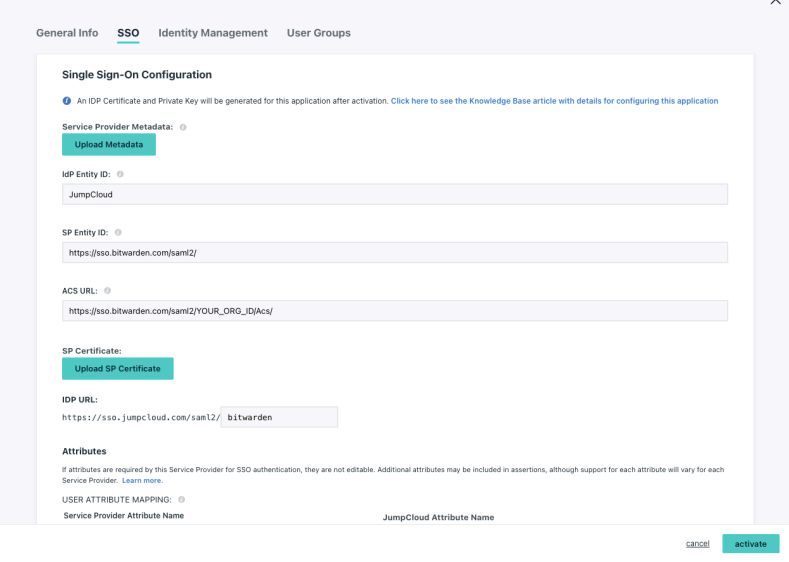

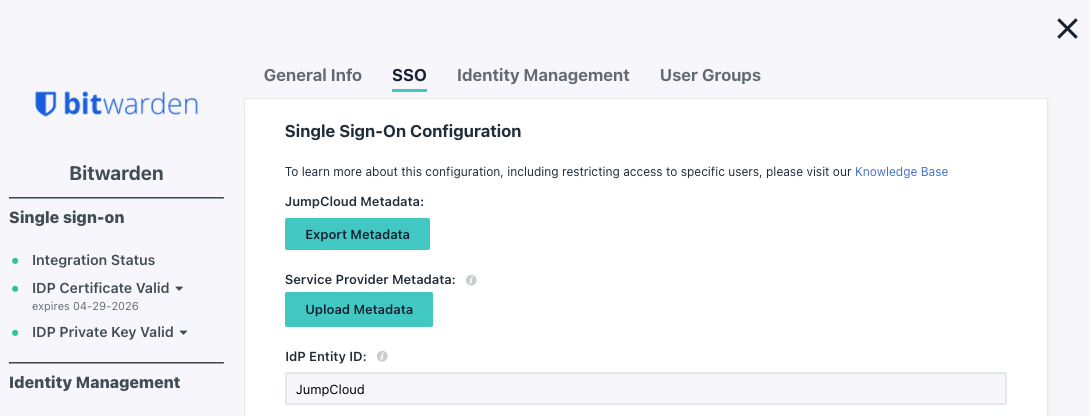

    In the Single Sign-On Configuration section, configure the following information:

    Single Sign-On Configuration
    Single Sign-On Configuration
    Field Description
    IdP Entity ID Set this field to a unique, Bitwarden-specific value, e.g. bitwardensso_yourcompany.
    SP Entity ID Set this field to the pre-generated SP Entity ID retrieved from the Bitwarden SSO Configuration screen.

    For Cloud-hosted customers, this is always https://sso.bitwarden.com/saml2. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain.com/sso/saml2.
    ACS URL Set this field to the pre-generated Assertion Consumer Service (ACS) URL retrieved from the Bitwarden SSO Configuration screen.

    For Cloud-hosted customers, this is always https://sso.bitwarden.com/saml2/your-org-id/Acs. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain.com/sso/saml2/your-org-id/Acs.

    Custom SAML App Only

    If you created a Custom SAML App, you’ll also need to configure the following Single Sign-On Configuration fields:

    Field Description
    SAMLSubject NameID Specify the JumpCloud attribute that will be sent in SAML responses as the NameID.
    SAMLSubject NameID Format Specify the format of the NameID sent in SAML responses.
    Signature Algoritm Select the algorithm to use to sign SAML assertions or reponses.
    Sign Assertion By default, JumpCloud will sign the SAML response. Check this box the sign the SAML assertion.
    Login URL Specify the URL from which your users will login to Bitwarden via SSO. For Cloud-hosted customers, this is always https://vault.bitwarden.com/#/sso. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain.com/#/sso.

    Attributes

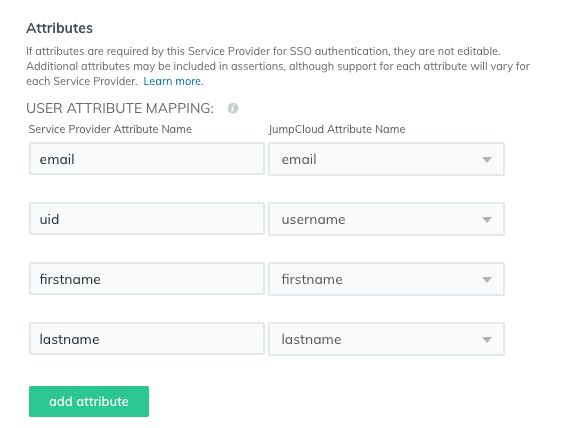

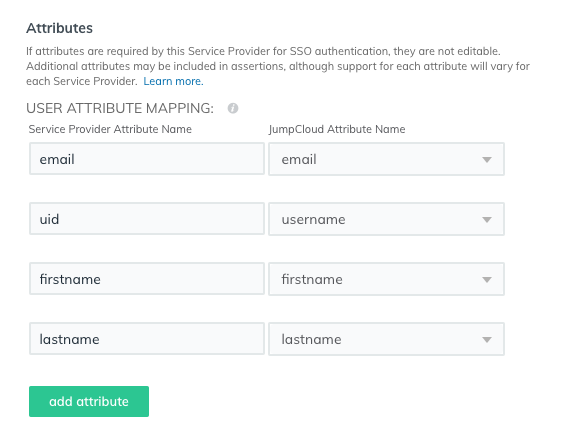

    In the Single Sign-On ConfigurationAttributes section, construct the following SP → IdP attribute mappings. If you selected the Bitwarden App in JumpCloud, these should already be constructed:

    Attribute Mapping
    Attribute Mapping

    Once you’re finished, select the activate button.

    Download the Certificate

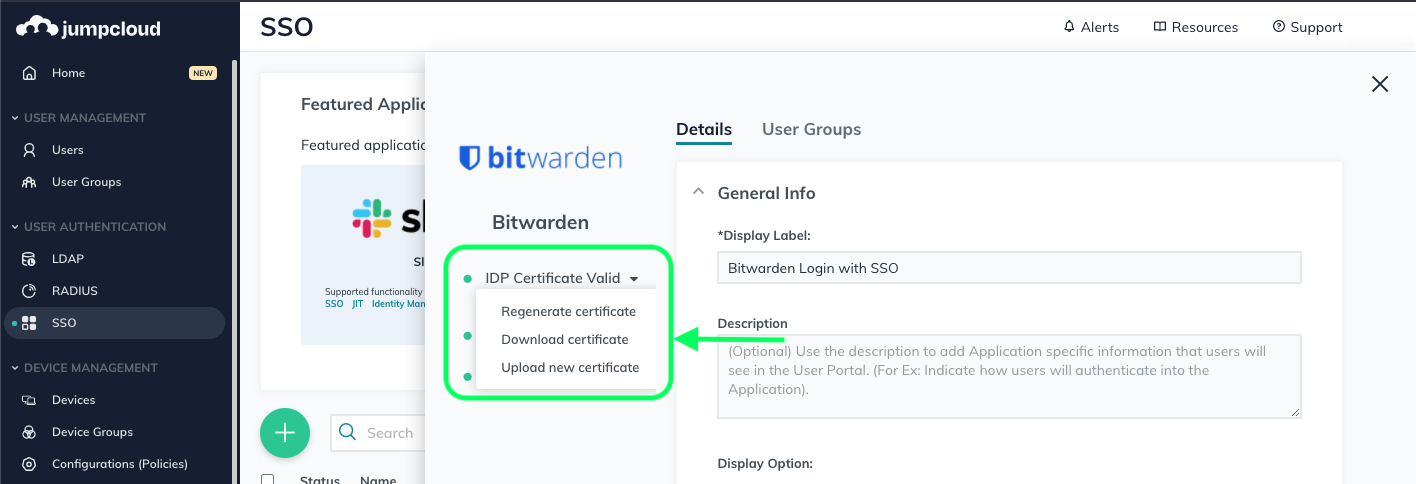

    Once the application is activated, use the SSO menu option again to open the created Bitwarden application. Select the IDP Certificate dropdown and Download certificate:

    Download Certificate
    Download Certificate

    Bind Users Groups

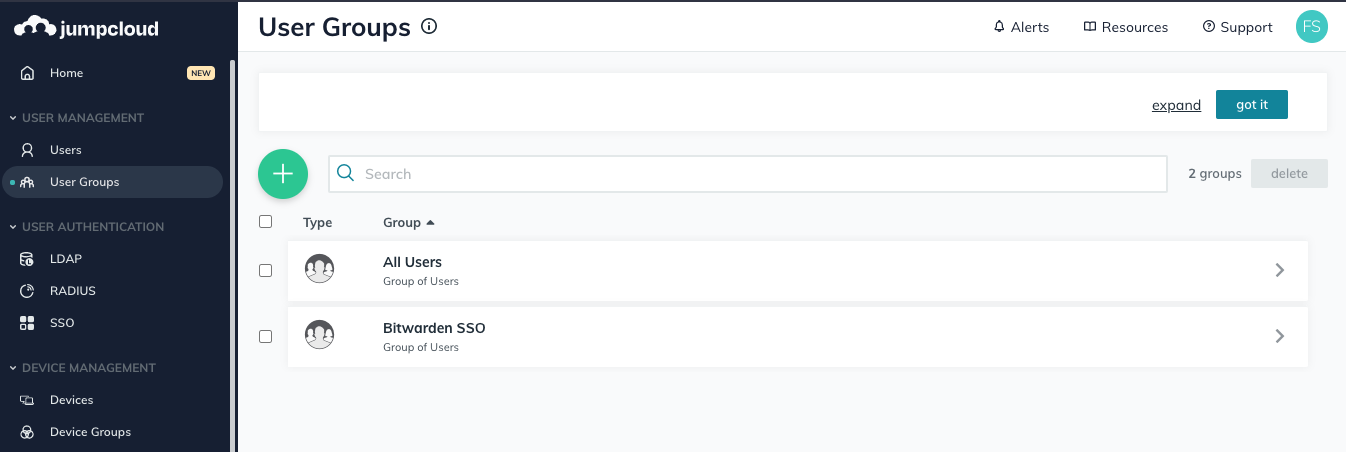

    In the JumpCloud Portal, select User Groups from the menu:

    User Groups
    User Groups

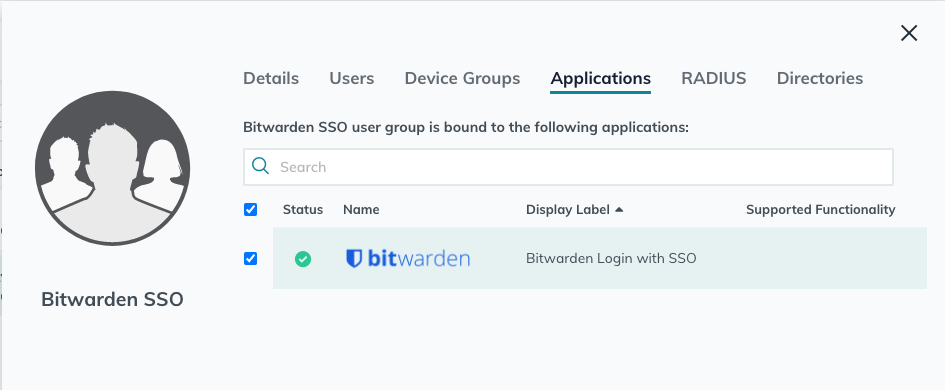

    Either create a Bitwarden-specific User Group, or open the All Users default User Group. In either case, select the Applications tab and enable access to the created Bitwarden SSO application for that User Group:

    Bind App Access
    Bind App Access
    Tip

    Alternatively, you can bind access to User Groups directly from the SSOBitwarden Application screen.

    Back to the Web Vault

    At this point, you’ve configured everything you need within the context of the JumpCloud Portal. Jump back over to the Bitwarden Web Vault to complete configuration.

    The Single Sign-On screen separates configuration into two sections:

    • SAML Service Provider Configuration will determine the format of SAML requests.
    • SAML Identity Provider Configuration will determine the format to expect for SAML responses.

    Service Provider Configuration

    Configure the following fields according to the choices selected in the OneLogin Portal during app creation:

    Field Description
    Name ID Format If you created a Custom SAML App, set this to whatever the specified SAMLSubject NameID Format is. Otherwise, leave Unspecified.
    Outbound Signing Algorithm The algorithm Bitwarden will use to sign SAML requests.
    Signing Behavior Whether/when SAML requests will be signed. By default, JumpCloud will not require requests to be signed.
    Minimum Incoming Signing Algorithm If you created a Custom SAML App, set this to whichever Signature Algorithm you selected. Otherwise, leave as rsa-sha256.
    Want Assertions Signed If you created a Custom SAML App, check this box if you set the Sign Assertion option in JumpCloud. Otherwise, leave unchecked.
    Validate Certificates Check this box when using trusted and valid certificates from your IdP through a trusted CA. Self-signed certificates may fail unless proper trust chains are configured within the Bitwarden Login with SSO docker image.

    When you’re done with the Service Provider configuration section, Save your work.

    Identity Provider Configuration

    Identity Provider Configuration will often require you to refer back to the OneLogin Portal to retrieve application values:

    Field Description
    Entity ID Enter your JumpCloud IdP Entity ID, which can be retrieved from the JumpCloud Single Sign-On Configuration screen.
    Binding Type Set to Redirect.
    Single Sign On Service URL Enter your JumpCloud IdP URL, which can be retrieved from the JumpCloud Single Sign-On Configuration screen.
    Single Log Out Service URL Login with SSO currently does not support SLO. This option is planned for future development.
    Artifact Resolution Service URL For JumpCloud implementations, you can leave this field blank.
    X509 Public Certificate Paste the retrieved Certificate, removing -----BEGIN CERTIFICATE----- and -----END CERTIFICATE-----.

    Extra spaces, carriage returns, and other extraneous characters will cause certifiation validation to fail.
    Outbound Signing Algorithm If you created a Custom SAML App, set this to whichever Signature Algorithm you selected. Otherwise, leave as rsa-sha256.
    Allow Unsolicited Authentication Response Login with SSO currently does not support unsolicited (IdP-Initiated) SAML assertions. This option is planned for future development.
    Disable Outbound Logout Requests Login with SSO currently does not support SLO. This option is planned for future development.
    Want Authentication Requests Signed Whether JumpCloud expects SAML requests to be signed.

    Test the Configuration

    Once your configuration is complete, test it by navigating to https://vault.bitwarden.com and selecting the Enterprise Single Sign-On button:

    Enterprise Single Sign-On button
    Enterprise Single Sign-On button

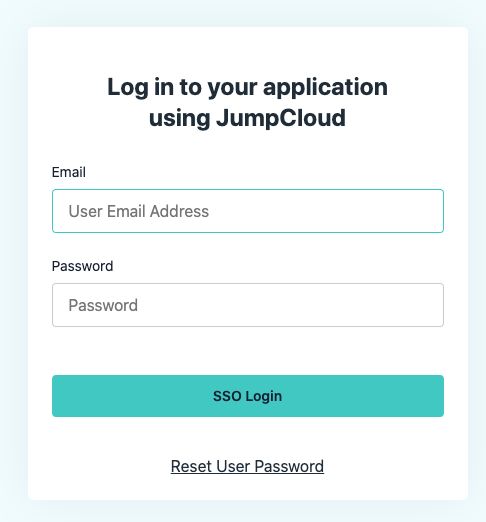

    Enter the configured Organization Identifier and select Log In. If your implementation is successfully configured, you’ll be redirected to the JumpCloud login screen:

    JumpCloud Login
    JumpCloud Login

    After you authenticate with your JumpCloud credentials, enter your Bitwarden Master Password to decrypt your Vault!
