OneLogin SAML Configuration

Category: Login with SSO
On this page:

    This article contains OneLogin-specific help for configuring Login with SSO via SAML 2.0. For help configuring Login with SSO for another IdP, refer to SAML 2.0 Configuration.

    Configuration involves working simultaneously within the Bitwarden Web Vault and the OneLogin Portal. As you proceed, we recommend having both readily available and completing steps in the order they’re documented.

    Tip

    Already an SSO expert? Skip the instructions in this article and download screenshots of sample configurations to compare against your own.

    Download Sample

    Open SSO in the Web Vault

    If you’re coming straight from SAML 2.0 Configuration, you should already have an Organization ID created. If you don’t refer to that article to create an Organization ID for SSO.

    Navigate to your Organization’s ManageSingle Sign-On screen:

    SAML 2.0 Configuration
    SAML 2.0 Configuration

    You don’t need to edit anything on this screen yet, but keep it open for easy reference.

    Create a OneLogin App

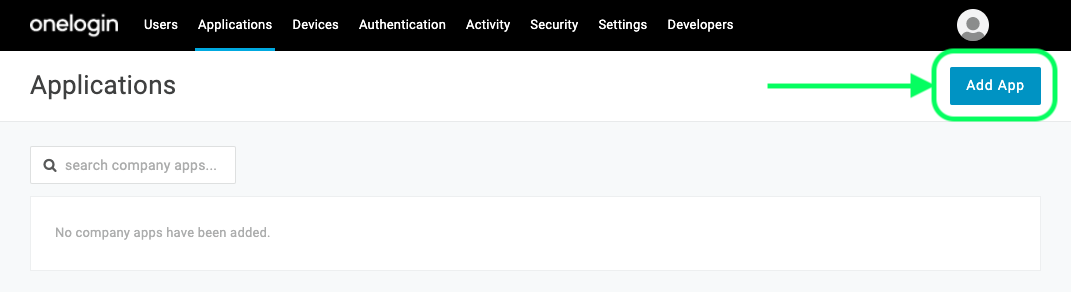

    In the OneLogin Portal, navigate to the the Applications screen and select the Add App button:

    Add an Application
    Add an Application

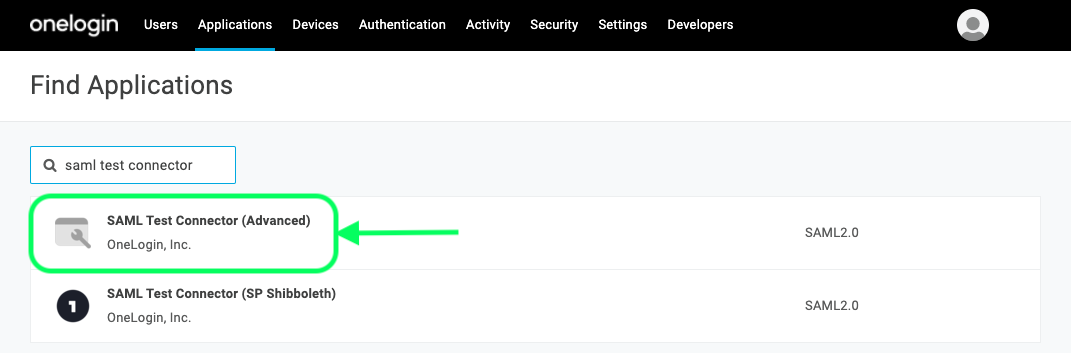

    In the search bar, type saml test connector and select the SAML Test Connector (Advanced) app:

    SAML Test Connector App
    SAML Test Connector App

    Give your application a Bitwarden-specific Display Name and select the Save button.

    Configuration

    Select Configuration from the left-hand navigation and configure the following information, some of which you’ll need to retrieve from the Single Sign-On screen:

    Application Setting Description
    Audience (EntityID) Set this field to the pre-generated SP Entity ID retrieved from the Bitwarden SSO Configuration screen.

    For Cloud-hosted customers, this is always https://sso.bitwarden.com/saml2. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain.com/sso.saml2.
    Recipient Set this field to the same pre-generated SP Entity ID used for the Audience (Entity ID) setting.
    ACS (Consumer) URL Validator Despite being marked Required by OneLogin, you don’t actually need to enter information into this field to integrate with Bitwarden. Skip to the next field, ACS (Consumer) URL.
    ACS (Consumer) URL Set this field to the pre-generated Assertion Consumer Service (ACS) URL retrieved from the Bitwarden SSO Configuration screen.

    For Cloud-hosted customers, this is always https://sso.bitwarden.com/saml2/your-org-id/Acs. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain.com/sso/saml2/your-org-id/Acs.
    SAML initiator Select Service Provider. Login with SSO does not currently support IdP-initiated SAML assertions.
    SAML nameID Format Set this field to the SAML NameID Format you want to use for SAML assertions.
    SAML signature element By default, OneLogin will sign the SAML Response. You can set this to Assertion or Both, and

    Select the Save button to finish your Configuration settings.

    Parameters

    Select Parameters from the left-hand navigation and use the Add icon to create the following custom parameters:

    Field Name Value
    email Email
    firstname First Name
    lastname Last Name

    Select the Save button to finish your custom parameters.

    SSO

    Select SSO from the left-hand navigation and complete the following:

    1. Select the View Details link under your X.509 Certificate:

      View your Cert
      View your Cert

      On the Certificate screen, download or copy your X.509 PEM Certificate, as you’ll need to use it later. Once copied, return to the main SSO screen.

    2. Set your SAML Signature Algorithm.
    3. Take note of your Issuer URL and SAML 2.0 Endpoint (HTTP). You’ll need to use these values shortly.

    Access

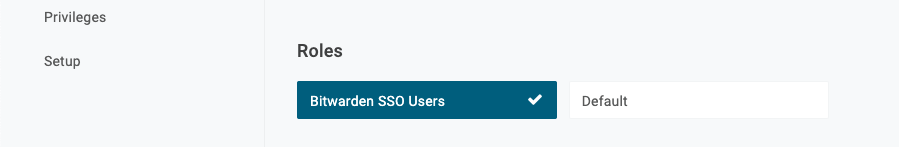

    Select Access from the left-hand navigation. In the Roles section, assign application access to all the roles you’d like to be able to use Bitwarden. Most implementations create a Bitwarden-specific role and instead opt to assign based on a catch-all (for example, Default) or based on pre-existing roles.

    Role Assignment
    Role Assignment

    Back to the Web Vault

    At this point, you’ve configured everything you need within the context of the OneLogin Portal. Jump back over to the Bitwarden Web Vault to complete configuration.

    The Single Sign-On screen separates configuration into two sections:

    • SAML Service Provider Configuration will determine the format of SAML requests.
    • SAML Identity Provider Configuration will determine the format to expect for SAML responses.

    Service Provider Configuration

    Configure the following fields according to the choices selected in the OneLogin Portal during app creation:

    Field Description
    Name ID Format Set this field to whatever you selected for the OneLogin SAML nameID Format field during App Configuration.
    Outbound Signing Algorithm Algorithm used to sign SAML requests, by default sha-256.
    Signing Behavior Whether/when SAML requests will be signed. By default, OneLogin will not require requests to be signed.
    Minimum Incoming Signing Algorithm Set this field to whatever you selected for the SAML Signature Algorithm during App Configuration
    Want Assertions Signed Check this box if you set the SAML signature element in OneLogin to Assertion or Both during App Configuration.
    Validate Certificates Check this box when using trusted and valid certificates from your IdP through a trusted CA. Self-signed certificates may fail unless proper trust chains are configured within the Bitwarden Login with SSO docker image.

    When you’re done with the Service Provider configuration section, Save your work.

    Identity Provider Configuration

    Identity Provider Configuration will often require you to refer back to the OneLogin Portal to retrieve application values:

    Field Description
    Entity ID Enter your OneLogin Issuer URL, which can be retrieved from the OneLogin app SSO screen.
    Binding Type Set to HTTP Post (as indicated in the SAML 2.0 Endpoint (HTTP)).
    Single Sign On Service URL Enter your OneLogin SAML 2.0 Endpoint (HTTP), which can be retrieved from the OneLogin app SSO screen.
    Single Log Out Service URL Login with SSO currently does not support SLO. This option is planned for future development, however you may pre-configure it if you wish.
    Artifact Resolution Service URL For OneLogin implementations, you can leave this field blank.
    X509 Public Certificate Paste the retrieved X.509 Certificate, removing -----BEGIN CERTIFICATE----- and -----END CERTIFICATE-----.

    Extra spaces, carriage returns, and other extraneous characters will cause certifiation validation to fail.
    Outbound Signing Algorithm Select the SAML Signature Algorithm selected in the OneLogin SSO configuration section.
    Allow Unsolicited Authentication Response Login with SSO currently does not support unsolicited (IdP-Initiated) SAML assertions. This option is planned for future development.
    Disable Outbound Logout Requests Login with SSO currently does not support SLO. This option is planned for future development.
    Want Authentication Requests Signed Whether OneLogin expects SAML requests to be signed.

    Test the Configuration

    Once your configuration is complete, test it by navigating to https://vault.bitwarden.com and selecting the Enterprise Single Sign-On button:

    Enterprise Single Sign-On button
    Enterprise Single Sign-On button

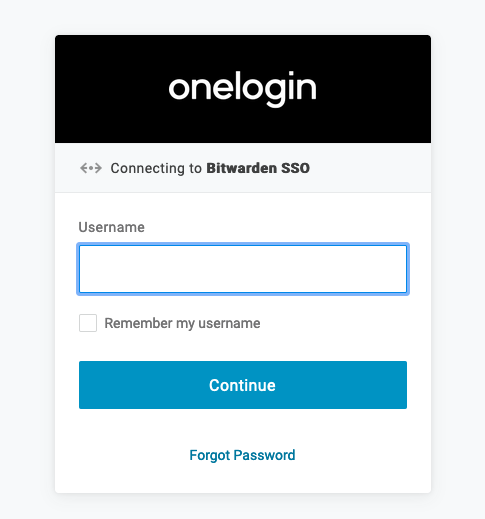

    Enter the configured Organization Identifier and select Log In. If your implementation is successfully configured, you’ll be redirected to the OneLogin login screen:

    OneLogin Login
    OneLogin Login

    After you authenticate with your OneLogin credentials, enter your Bitwarden Master Password to decrypt your Vault!
