AWS SAML Implementation

Category: Login with SSO
On this page:

    This article contains AWS-specific help for configuring Login with SSO via SAML 2.0. For help configuring Login with SSO for another IdP, refer to SAML 2.0 Configuration.

    Configuration involves working simultaneously within the Bitwarden Web Vault and the AWS Console. As you proceed, we recommend having both readily available and completing steps in the order they’re documented.

    Tip

    Already an SSO expert? Skip the instructions in this article and download screenshots of sample configurations to compare against your own.

    Download Sample

    Open SSO in the Web Vault

    If you’re coming straight from SAML 2.0 Configuration, you should already have an Organization ID created. If you don’t refer to that article to create an Organization ID for SSO.

    Navigate to your Organization’s ManageSingle Sign-On screen:

    SAML 2.0 Configuration
    SAML 2.0 Configuration

    You don’t need to edit anything on this screen yet, but keep it open for easy reference.

    Create an AWS SSO Application

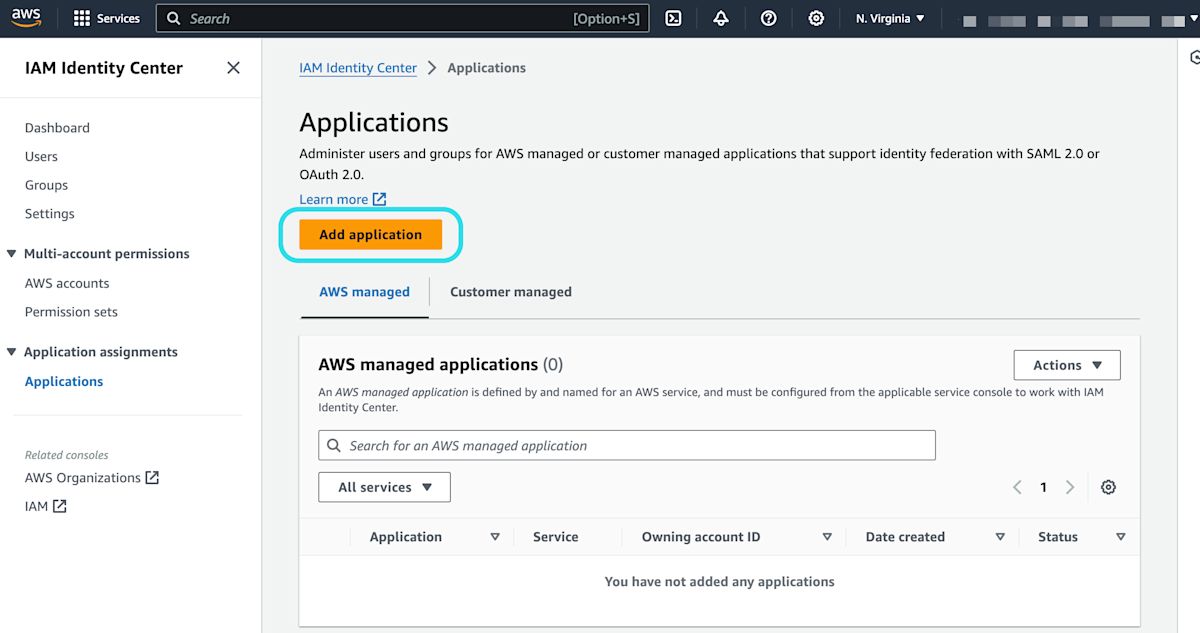

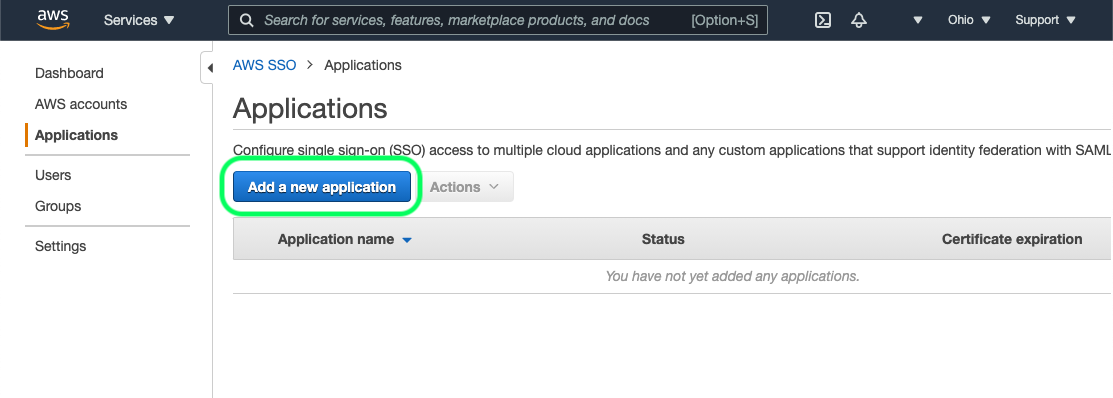

    In the AWS Console, navigate to AWS SSO, select Applications from the navigation, and select the Add a new application button:

    Add a new application
    Add a new application

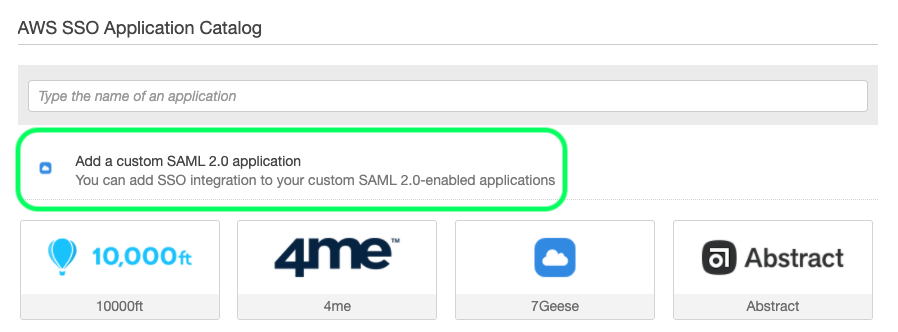

    Underneath the search bar, select the Add a custom SAML 2.0 application option:

    Add a custom SAML app
    Add a custom SAML app

    Details

    Give the application a unique, Bitwarden-specific Display name.

    AWS SSO Metadata

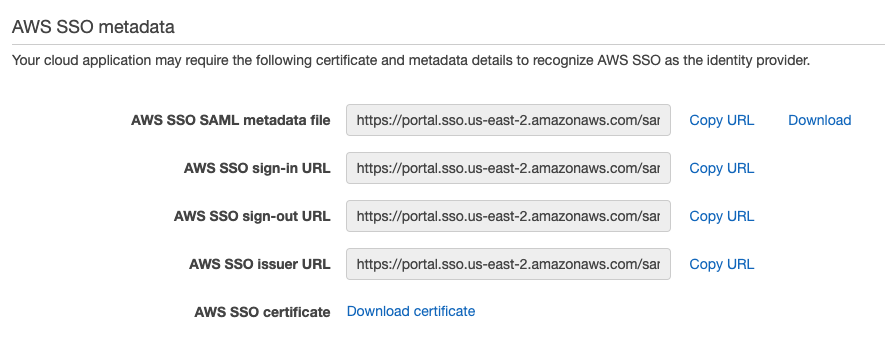

    You’ll need the information in this section for a later configuration step. Copy the AWS SSO sign-in URL and AWS SSO issuer URL, and download the AWS SSO certificate:

    AWS SSO Metadata
    AWS SSO Metadata

    Application Properties

    In the Application start URL field, specify the login URL from which users will access Bitwarden. For Cloud-hosted customers, this is always https://vault.bitwarden.com/#/sso. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain/#/sso.

    Application metadata

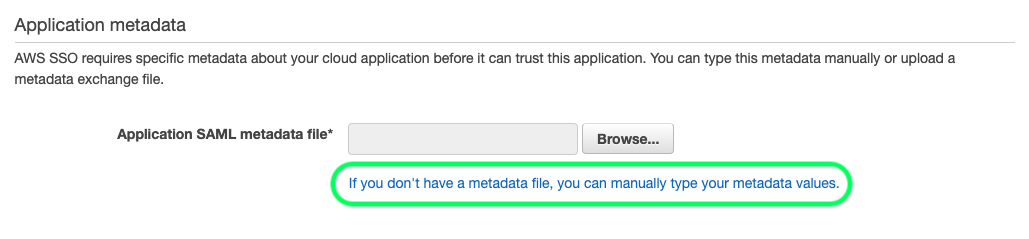

    In the Application metadata section, select the option to manually enter metadata values:

    Enter metadata values
    Enter metadata values

    Configure the following fields:

    Field Description
    Application ACS URL Set this field to the pre-generated Assertion Consumer Service (ACS) URL retreived from the Bitwarden SSO configuration screen.

    For Cloud-hosted customers, this is always https://sso.bitwarden.com/saml2/your-org-id/Acs. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain/sso/your-org-id/Acs.
    Application SAML audience Set this field to the pre-generated SP Entity ID retrieved from the Bitwarden SSO Configuration screen.

    For Cloud-hosted customers, this is always https://sso.bitwarden.com/saml2. For self-hosted instances, this is determined by your configured server URL, for example https://your.domain.com/sso/saml2.

    When you’re finished, select Save changes.

    Attribute mappings

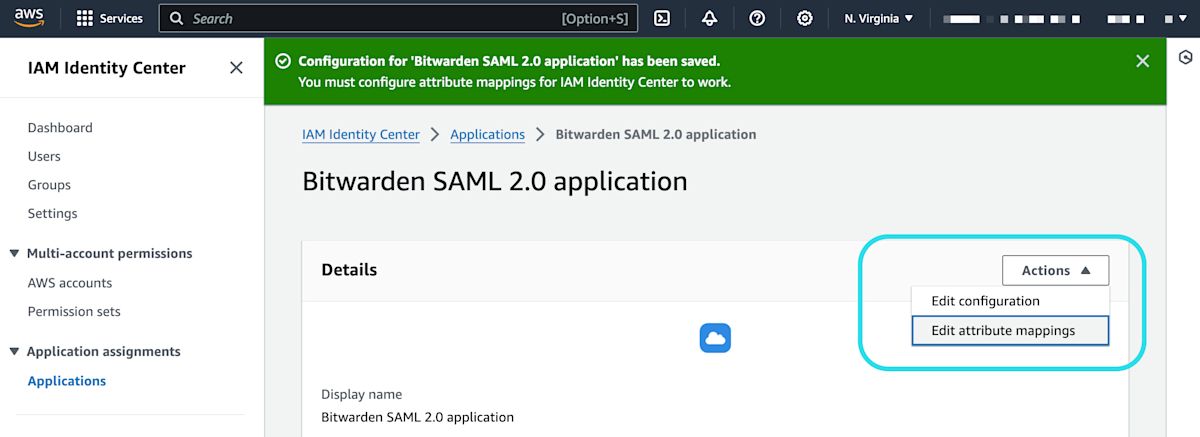

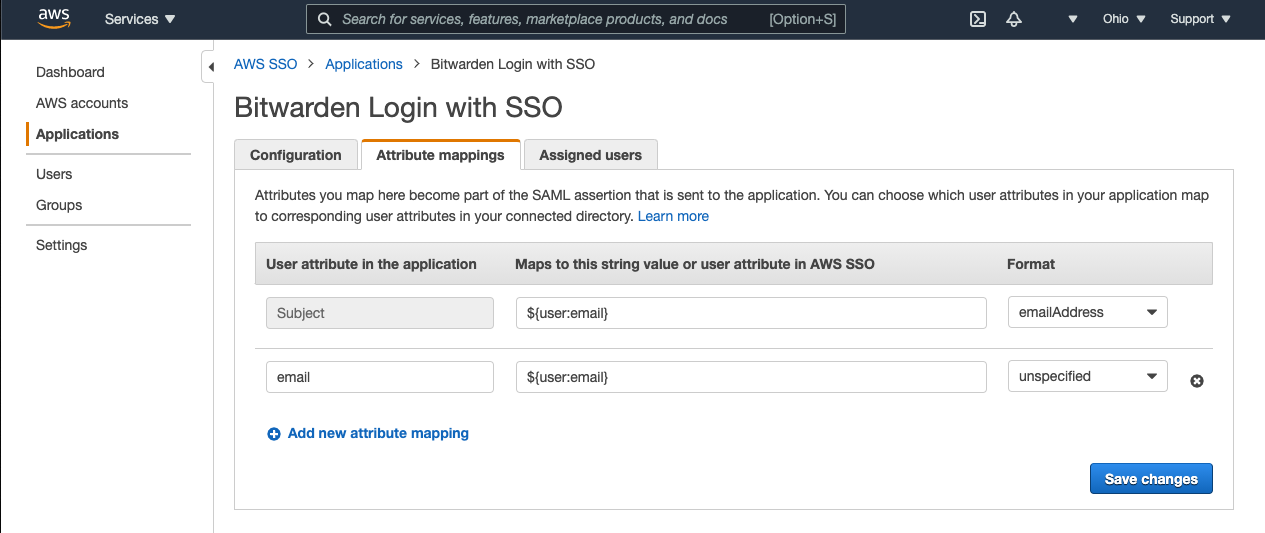

    Navigate to the Attribute mappings tab and configure the following mappings:

    Attribute mappings
    Attribute mappings
    User attribute in the application Maps to this string value or user attribute in AWS SSO Format
    Subject ${user:email} emailAddress
    email ${user:email} emailAddress

    Assigned users

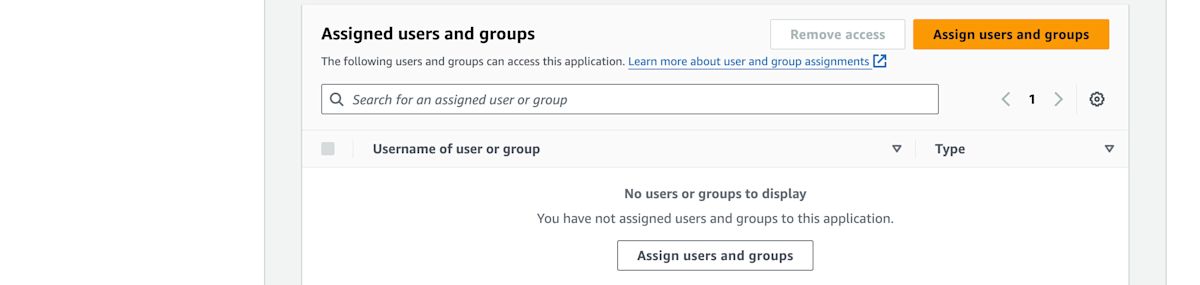

    Navigate to the Assigned users tab and select the Assign users button:

    Assign users
    Assign users

    You can assign users to the application on an individual level, or by Group.

    Back to the Web Vault

    At this point, you’ve configured everything you need within the context of the AWS Console. Jump back over to the Bitwarden Web Vault to complete configuration.

    The Single Sign-On screen separates configuration into two sections:

    • SAML Service Provider Configuration will determine the format of SAML requests.
    • SAML Identity Provider Configuration will determine the format to expect for SAML responses.

    Service Provider Configuration

    The Service Provider Configuration should already be complete, however you may choose to edit any of the following fields:

    Field Description
    Name ID Format Set to Email Address.
    Outbound Signing Algorithm The algorithm Bitwarden will use to sign SAML requests.
    Signing Behavior Whether/when SAML requests will be signed.
    Minimum Incoming Signing Algorithm By default, AWS SSO will sign with SHA-256. Unless you’ve changed this, select sha256 from the dropdown.
    Want Assertions Signed Whether Bitwarden expects SAML assertions to be signed.
    Validate Certificates Check this box when sing trusted and valid certificates from your IdP through a trusted CA. Self-signed certificates may fail unless proper trust chains are configured within the Bitwarden Login with SSO docker image.

    When you’re done with the Service Provider Configuration section, Save your work.

    Identity Provider Configuration

    Identity Provider Configuration will often require you to refer back to the AWS Console to retrieve application values:

    Field Description
    Entity ID Enter the AWS SSO issuer URL, retrieved from the AWS SSO metadata section in the AWS Console.
    Binding Type Set to HTTP POST or Redirect.
    Single Sign On Service URL Enter the AWS SSO sign-in URL, retrieved from the AWS SSO metadata section in the AWS Console.
    Single Log Out Service URL Login with SSO currently does not support SLO. This option is planned for future development, however you may pre-configure it with the AWS SSO sign-out URL retrieved from the AWS SSO metadata section in the AWS Console.
    Artifact Resolution Service URL For AWS implementations, you can leave this field blank.
    X509 Public Certificate Paste the downloaded certificate, removing -----BEGIN CERTIFICATE----- and -----END CERTIFICATE-----.

    Extra spaces, carriage returns, and other extraneous characters will cause certificate validation to fail.
    Outbound Signing Algorithm By default, AWS SSO will sign with sha256. Unless you’ve changed this, select sha256 from the dropdown.
    Allow Unsolicited Authentication Response Login with SSO currently does not unsolicited (IdP-initiated) SAML assertions. This option is planned for future development.
    Disable Outbound Logout Requests Login with SSO currently does not support SLO. This option is planned for future development.
    Want Authentication Requests Signed Whether AWS SSO expects SAML requests to be signed.

    When you’re done with the Identity Provider Configuration section, Save your work.

    Test the Configuration

    Once your configuration is complete, test it by navigating to https://vault.bitwarden.com and selecting the Enterprise Single Sign-On button:

    Enterprise Single Sign-On button
    Enterprise Single Sign-On button

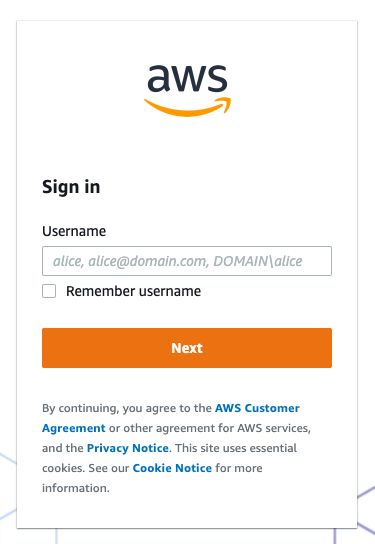

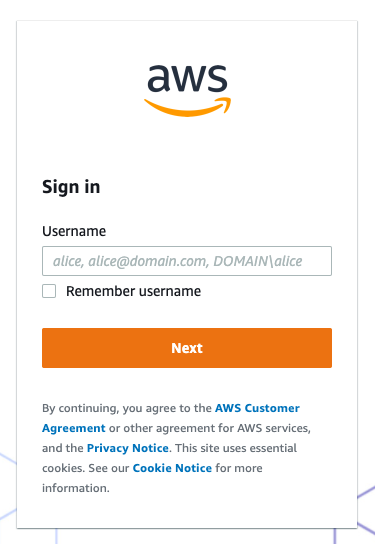

    Enter the configured Organiztion Identifier and select Log In. If your implementation is successfully configured, you’ll be redirected to the AWS SSO login screen:

    AWS login screen
    AWS login screen

    After you authenticate with your Auth0 credentials, enter your Bitwarden Master Password to decrypt your Vault!
